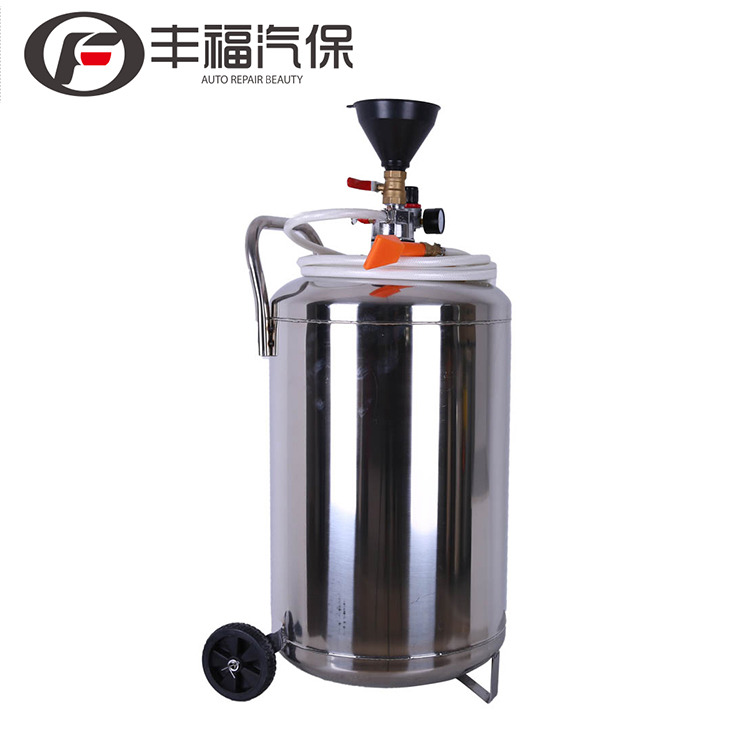

80L Car Foaming Wash Machine, Stainless Steel Car Wash Foam Machine
Car wash foam equipment,foam car washing machine
80L stainless steel foam machine foam machine for car wash
Model | Capacity | Air Pressure | Wall Thickness | Hose Length | The Greatest Pressure |
FF-Q909A-2 | 80L | 1-3 bar | 2.0mm | 5m | 3 bar |
1 | Flat outlet*1 | |
2 | 1/2-10 ball valve*1 | |
3 | foam tube*1 | |
4 | 10*6 hose clamp*2 | |
5 | 14.5'' hose connector*1 | |
6 | Funnel*1 | |
7 | 1'' inlet valve*1 | |
8 | Integrated nut*1 | |
9 | Safety valve*1 | |
10 | 14*1 Nipple*1 | |
11 | 14*1Pressure regulating valve | |
12 | Inlet connector*1 | |
13 | 1/4 Inlet valve*1 | |
14 | Pressure guage*1 | |
15 | 65*5 0# Seal ring*1 | |
16 | Foaming Pipe*1 | |
17 | Tank*1 | |
18 | 1/4-8 Faster connector*2 | |
19 | 5*8 waterline tube*1 | |
20 | 5'' wheel*2 | |
21 | 12 waher*2 | |
22 | bolt*2 | |
23 | M12*10 Hexagon screws*1 |
Operating instructions
1.Open the water filling vlave and air outlet vlave : Fill in 50L water and then 300ml(600ml for the first time) car detergent.
2.Shut off the filling vlave and air outlet vlave,turn off the switch of jet gun valve and connect the quick coupling to compressed air.
3.After the above actions,turn on the switch for compressed air and when the compressed air reaches a pressure at 2 bar,,turn on the switch of jet gun valve to jet the foam. The jetting range of which is adjustable through the change of pressure.
4.After filled in 50L water and 500ml detergent, the equipment is available to clean 25-30 small cars. 25L detergent is applicable for 1500cars.
Note
The pressure of the air vlave is set at 2.0 bar when delivered, unless required, which is unnecessart to be adjusted. The foam would be preferable jetted at the pressure within 1.5-2.0 bar.
Troubleshooting
1. If the jet gun jets no foam. -----* The compressed air fails to access. * The foam liquid has not been filled in.
2.The liquid jetted has no foam. -----* The pressure is below 1.5 bar * The cocentration of foam liquid is low( Due to the improper propertion of water and foam.)
Maintenance
This cleaning equipment is available for service of years without tailures.
1.Check regularly whether there is any leakage and repair it if any.
2.Check regularly the airproof connction of hoses,
3.Wipe the surface of equipment with towel or napped fabric to keep it clean.
4.After use, keep the equipment out of the sun.
Cautions
1.Only the qualified operators may have the access to the equipment .
2.Do not smoke near by this equipment.
3.Before use, adjust the jetting range of jet fun to avoid injury.
4.Do not use the detergents other than those designated by the original supplier, otherwise it would affect the service life of the oil valves, rubbers and other components and the performance of cleaning.
Q1: What Certificates do you have?
A: We have CE Certification.
Q2: What is your sample policy?
A: Usually, we send sample by express freight collect.
Q3: How many days for the mass producing?
A: It take 25 days after we confirm all artwork.
Q4: What payment terms do you do?
A: T/T.
Q5: What’s your MOQ?
A: Our MOQ is 50pcs.
Q6: Can you do OEM?
A: Yes, our factory can offer OEM according to your requirements.
Q15. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
